The Magpul® M-LOK® Dovetail Adapter for RRS®/ARCA® Interface is a lightweight, machined, Mil-Spec hard anodized aluminum mounting plate.

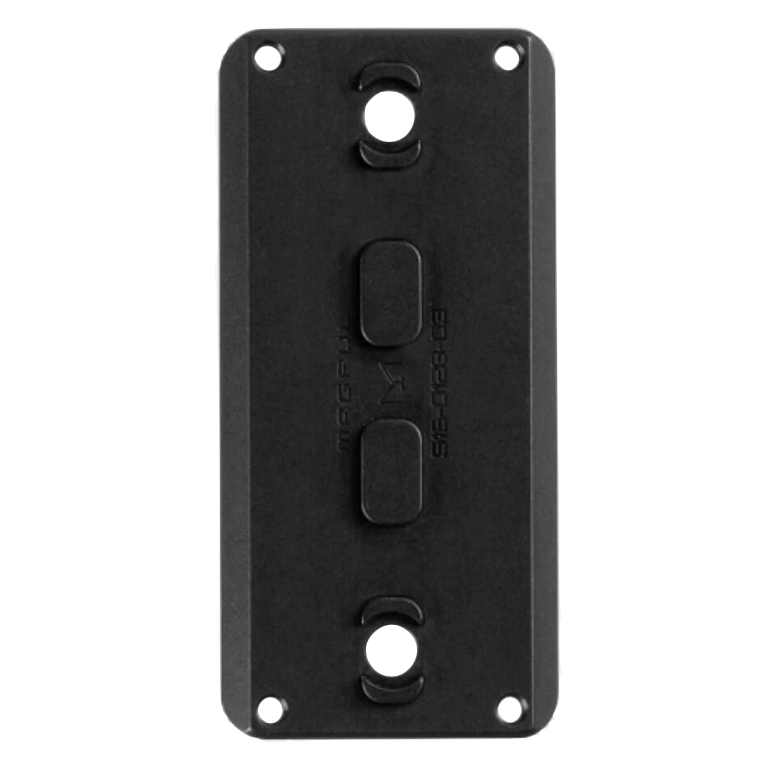

2 Slot for RRS®/ARCA® Interface:
Designed for M-LOK slot compatible hand guards and is fully compatible with most accessories—bipods, tripods, etc.—that use the RRS Dovetail Standard.
The 2 Slot M-LOK Dovetail Adapter features multiple drilled and tapped holes that are optimally located to limit overall travel of accessories. It has comfortable, yet functional, snag-resistant beveled edges. Its optimally-placed recoil / impact mitigation lugs ensure the M-LOK Dovetail Adapter remains securely in place throughout the most rugged use and heaviest recoil impulses, making the M-LOK Dovetail Adapter a rugged, repeatable and precise mounting solution.

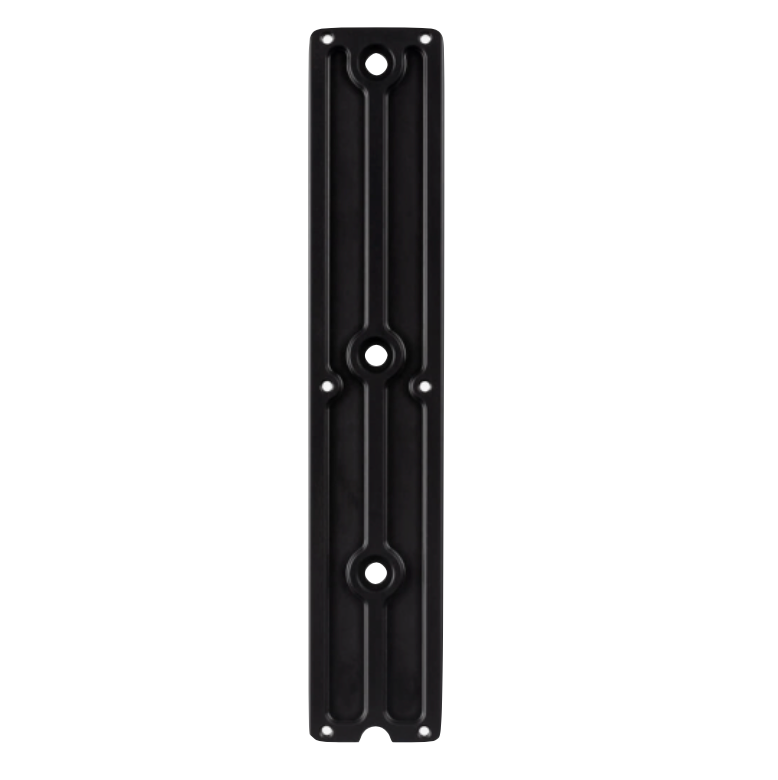

4 Slot for RRS®/ARCA® Interface:
Designed for M-LOK slot compatible hand guards and is fully compatible with most accessories—bipods, tripods, etc.—that use the RRS Dovetail Standard.
The 4 Slot M-LOK Dovetail Adapter features multiple drilled and tapped holes that are optimally located to limit overall travel of accessories. It has comfortable, yet functional, snag-resistant beveled edges. It also includes a hardware access feature to allow removal of the front action screw on a rifle mounted on a Magpul Pro 700 chassis without the need for removal of the Dovetail Adapter from the chassis. Optimally-placed recoil / impact mitigation lugs ensure the M-LOK Dovetail Adapter remains securely in place throughout the most rugged use and heaviest recoil impulses, making the M-LOK Dovetail Adapter a rugged, repeatable and precise mounting solution.

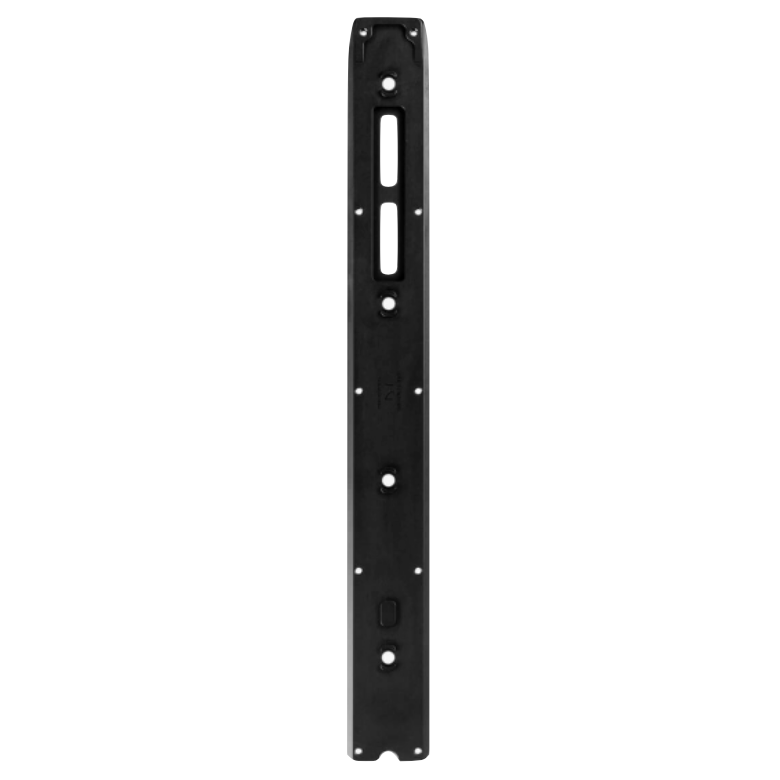

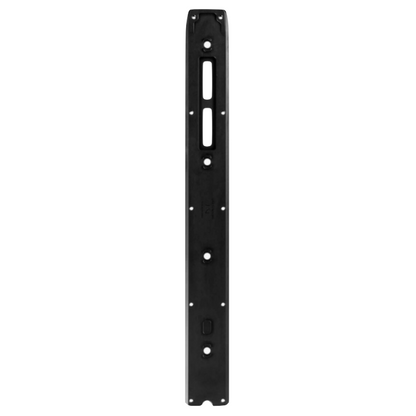

Pro Stock Full Rail for RRS®/ARCA® Interface:
Designed specifically for the Magpul Pro 700 rifle stock and is fully compatible with most accessories--bipods, tripods, etc.--that use the RRS Dovetail Standard.
The M-LOK Dovetail Adapter features multiple drilled and tapped holes that are optimally located to limit overall travel of accessories. It has comfortable, yet functional, snag-resistant beveled edges and it has a feature that allows access to the front action screw without requiring removal of the Dovetail Adapter from the chassis. Optimally-placed recoil/impact mitigation lugs ensure the M-LOK Dovetail Adapter remains securely in place throughout the most rugged use and heaviest recoil impulses, making the M-LOK Dovetail Adapter a rugged, repeatable and precise mounting solution.
Made in the USA.
SPECIFICATIONS:
2 Slot for RRS®/ARCA® Interface:
Attachment: RRS / ARCA
Length, max: 3.15 in.
Weight: 1.31 oz.
Height: 0.20 in.
Width: 1.50 in.
Compatibility: Compatible with RRS Dovetail Standard accessories and M-LOK forends and hand guards
4 Slot for RRS®/ARCA® Interface:
Attachment: RRS / ARCA
Length, max: 7.75 in.
Weight: 2.79 oz.
Height: 0.20 in.
Width: 1.50 in.
Compatibility: M-LOK forends and hand guards, accessories using the RRS Dovetail Standard
Pro Stock Full Rail for RRS®/ARCA® Interface:
Attachment: RRS / ARCA
Platform: Remington® 700
Length, max: 13.25 in.
Weight: 4.49 oz.
Compatibility: Fits all Magpul Pro 700 Stock M-LOK forends and accepts RRS Dovetail Standard compatible accessories. Not compatible with any other M-LOK hand guard without overhanging.
